تفاصيل المنتج:
|
| حجم اللوحة: | 10,4 بوصة | قرار: | 1024 × 768 |
|---|---|---|---|
| نسبة التباين: | 250: 1 (الطباع.) | تكرر: | 60HZ |
| مدخلات الجهد: | 3.3 فولت (الطباع.) | ||
| تسليط الضوء: | industrial touch screen display,industrial lcd screen,industrial lcd screen |
||

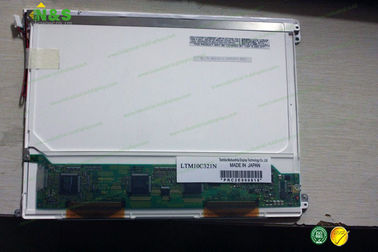

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)
LTM10C321N Basic Information
| Panel Model | LTM10C321N |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM10C321N Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 217.2×164.7 mm (H×V) |
| Outline Dimension | 238.6×173.2 mm (H×V) |
| Outline Depth | 5.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM10C321N Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.340; Wy:0.340 |
| White Variation | 1.82 (Max.)(9 points) |
| Sunlight Readable | N |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2 .Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSF650FJ02 | Samsung | 65" | 3840×2160 |
| ST5461B05-2 | CSOT | 55" | 1920×1080 |
| ST5461B05-1 | CSOT | 55" | 1920×1080 |
| LH500WF3-SH01 | LG Display | 5.0" | 1080×1920 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| LC550DPY-SHA1 | LG Display | 55" | 1920×1080 |
| HV320FHB-N10 | BOE | 31.5" | 1920×1080 |
| DPP050A224A | JDI | 5.0" | 1080×1920 |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
