تفاصيل المنتج:
|
| حجم اللوحة: | 10,4 بوصة | قرار: | 800 × 600 |
|---|---|---|---|
| منطقة نشط: | 211.2 × 158.4 ملم | سطح: | Antiglare ، طلاء الصلب |
| نسبة التباين: | 400: 1 (الطباع.) | عرض لون: | 262 كيلوبايت (6 بت) |
| تكرر: | 60HZ | ||
| تسليط الضوء: | industrial touch screen display,industrial lcd panel,industrial lcd panel |
||

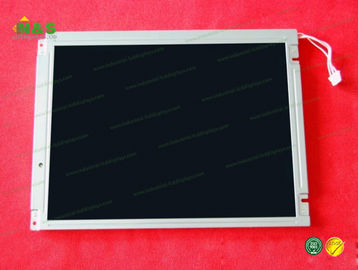

PVI PD104SL5 10.4 inch 211.2×158.4 mm Active Area 243×185.1×10.8 mm Outline Surface Antiglare, Hard coating
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
| TV070WSU-N10 | BOE | 7.0" | 1024×600 |
| HSD040I3N1-B00-0299 | HannStar | 4.0" | 320×240 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
PD104SL5 Basic Information
| Panel Model | PD104SL5 |
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51410D104-FW-P-AG |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
PD104SL5 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 480±20g |
| Surface | Antiglare, Hard coating |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.4×162.6 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 10.5/10.8 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
PD104SL5 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/55/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.320; Wy:0.350 |
| White Variation | 1.25/1.82 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
PD104SL5 Backlight System
| Lamp Position | Edge light type (Top side) |
| Lamp Type | CCFL |
| Lamp Amount | 2 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 15K(Typ.) (Hours) |
| Lamp Voltage | 475±48V |
| Lamp Current | 3.0/7.0/8.0mA (Min./Typ./Max.) |
| Lamp Operating Frequency | 30/55/60KHz (Min./Typ./Max.) |
| Lamp Startup Voltage | 875/1300V (Max.)(Ta=+25/0℃) |
| Lamps Power Consumption | 5.98/6.65/7.32W (Min./Typ./Max.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
