تفاصيل المنتج:
|
| قرار: | 1366 × 768 | سطح: | غلير (هيز 0٪) |
|---|---|---|---|
| نسبة التباين: | 500: 1 (كتابة.) | حجم اللوحة: | 15.6 بوصة |
| تكرر: | 60HZ | ||
| تسليط الضوء: | industrial lcd screen,industrial lcd panel,industrial lcd panel |
||

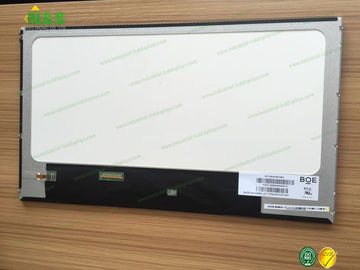

Normally White NT156WHM-N50 15.6 inch with 359.5×223.8×5.5 Outline Surface Glare (Haze 0%) Frequency 60Hz
NT156WHM-N50 Basic Information
| Panel Model | NT156WHM-N50 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
NT156WHM-N50 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 450g (Max.) |
| Surface | Glare (Haze 0%) |
| Active Area | 344.232×193.536 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 5.5 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT156WHM-N50 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV320FHB-N10 | BOE | 31.5" | 1920×1080 |
| TV070WSU-N10 | BOE | 7.0" | 1024×600 |
| HV320WHB-N80 | BOE | 31.5" | 1366×768 |
| BS053HDG-N50-6200 | BOE | 5.3" | 720×1280 |
| HV550QUB-B10 | BOE | 55" | 3840×2160 |
| BF039WVQ-100 | BOE | 3.9" | 480×800 |
| HV480FH2-600 | BOE | 48" | 1920×1080 |
| HV320WHB-N10 | BOE | 31.5" | 1366×768 |
| MT207FHB-N20 | BOE | 20.7" | 1920×1080 |
| MT207FHB-N10 | BOE | 20.7" | 1920×1080 |
| HV320WHB-N06 | BOE | 31.5" | 1366×768 |
