تفاصيل المنتج:
|
| نوع اللوحة: | لتبس تفت-لد | حجم اللوحة: | 7.8 بوصة |
|---|---|---|---|
| قرار: | 480 × 234 | خطّ محيطيّ مجمل: | 188 × 120 مم |
| نسبة التباين: | 250: 1 (كتابة.) | مدخلات الجهد: | 3.3V (تيب.) (فب) |
| تسليط الضوء: | industrial lcd screen,industrial lcd panel,industrial lcd panel |
||

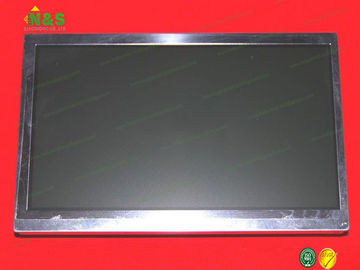

LTM07C383 Normally White 7.8 inch 480×234 Active Area 172.1×96.6 mm Outline 188×120 mm Contrast Ratio 250:1 (Typ.)
LTM07C383 Basic Information
| Panel Model | LTM07C383 |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,7.8 inch, 480×234 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM07C383 Mechanical Features
| Dot Resolution | 480(RGB)×234 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 68 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1195×0.413 mm (H×V) |
| Pixel Pitch | 0.3585×0.413 mm (H×V) |
| Weight | 440g (Typ.) |
| Active Area | 172.1×96.6 mm (H×V) |
| Bezel Area | 175.7×100.2 mm (H×V) |
| Outline Dimension | 188×120 mm (H×V) |
| Outline Depth | 25.0 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM07C383 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MT207FHB-N10 | BOE | 20.7" | 1920×1080 |
| LSC320HN08 | Samsung | 31.5" | 1920×1080 |
| H450VTN01.0 | AUO | 4.5" | 480×800 |
| LC430EGY-SHM1 | LG Display | 43" | 3840×2160 |
| LC600DUK-SGK1 | LG Display | 60" | 1920×1080 |
| V500DK1-QS1 | Innolux | 50" | 3840×2160 |
| CLAF050WG41 TXX | CPT | 5.0" | 720×1280 |
| CLAF050LN41 TXX | CPT | 5.0" | 540×960 |
| CLAN055WA41 3XB | CPT | 5.5" | 720×1280 |
| LH500WF4-SH01 | LG Display | 5.0" | 1080×1920 |
