تفاصيل المنتج:
|
| نوع اللوحة: | a-Si TFT-LCD | حجم اللوحة: | 10,1 بوصة |
|---|---|---|---|
| قرار: | 1024 × 600 | منطقة نشط: | 222.72 × 125.28 ملم |
| سطح: | Antiglare ، طلاء الصلب (3H) | نسبة التباين: | 500: 1 (الطباع.) |
| تسليط الضوء: | industrial touch screen display,industrial lcd panel,industrial lcd panel |
||

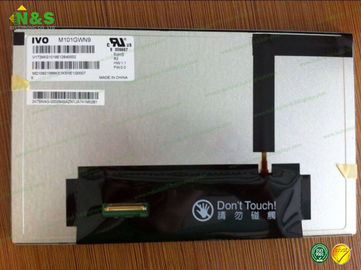

Normally White M101GWN9 R2 TFT LCD Module IVO 10.1 inch 1024×600 resolution Surface Antiglare, Hard coating (3H)
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
M101GWN9 R2 Basic Information
| Panel Model | M101GWN9 R2 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M101GWN9 R2 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 310g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 225.72×128.28 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 5.5/8.04 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101GWN9 R2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 6/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.305; Wy:0.325 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C054SWZ5 | IVO | 5.4" | 540×960 |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
| C050SWAF-0 | IVO | 5.0" | 720×1280 |
| C050SWZ3-1 | IVO | 5.0" | 540×960 |
| C017SN81-0 | IVO | 1.8" | 128×160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
