تفاصيل المنتج:
|
| نوع اللوحة: | a-Si TFT-LCD | حجم اللوحة: | 10,1 بوصة |
|---|---|---|---|
| قرار: | 1024 × 600 | سطح: | Antiglare ، طلاء الصلب (3H) |
| منطقة نشط: | 222.72 × 125.28 ملم | مدخلات الجهد: | 3.3 فولت (الطباع.) |
| تسليط الضوء: | industrial touch screen display,industrial lcd screen,industrial lcd screen |
||

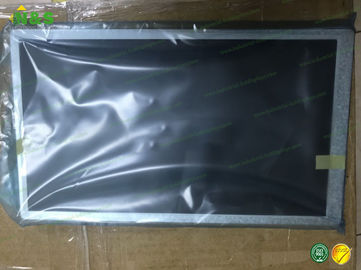

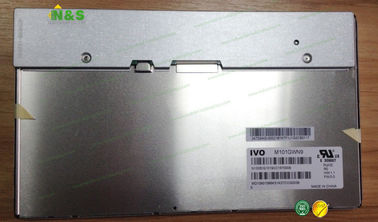

Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm
M101GWN9 R0 Basic Information
| Panel Model | M101GWN9 R0 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
M101GWN9 R0 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 440/440g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 225.72×128.28 mm (H×V) |
| Outline Dimension | 244×143 mm (H×V) |
| Outline Depth | 7.2/12.9 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101GWN9 R0 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.305; Wy:0.325 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C060SWA3 R0 | IVO | 6.0" | 720×1280 |
| C080SWW3-0 | IVO | 8.0" | 800×1280 |
| CLAP042JB01 DW | CPT | 4.2" | 480×272 |
| BP096WX7-100 | BOE | 9.6" | 800×1280 |
| V500HK3-PS1 | Innolux | 50" | 1920×1080 |
| ST3151A04-7 | CSOT | 31.5" | 1366×768 |
| HSD0702FW1-A00 | HannStar | 7.0" | 1024×600 |
| TPF0702002N | JDI | 7.0" | 1200×1920 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| BF050QHE-400 | BOE | 5.0" | 540×960 |
