تفاصيل المنتج:
|
| نوع اللوحة: | a-Si TFT-LCD | حجم اللوحة: | 10,1 بوصة |
|---|---|---|---|
| قرار: | 1920 × 1200 | منطقة نشط: | 216.576 × 135.36 ملم |
| سطح: | طلاء الصلب | مدخلات الجهد: | 3.3 فولت (الطباع.) |
| تسليط الضوء: | industrial touch screen display,industrial lcd screen,industrial lcd screen |
||

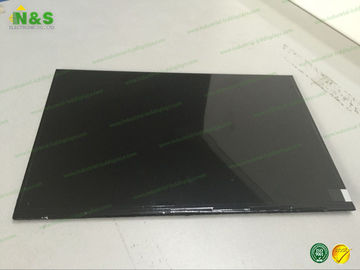

Normally Black HSD101PUW1-A00 TFT LCD Module HannStar 10.1 inch Outline 227.72×147.8×4.55 mm
HSD101PUW1-A00 Basic Information
| Panel Model | HSD101PUW1-A00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1920×1200 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HSD101PUW1-A00 Mechanical Features
| Dot Resolution | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 225 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0376×0.1128 mm (H×V) |
| Pixel Pitch | 0.1128×0.1128 mm (H×V) |
| Weight | 140g (Max.) |
| Surface | Hard coating |
| Active Area | 216.576×135.36 mm (H×V) |
| Outline Dimension | 227.72×147.8 mm (H×V) |
| Outline Depth | 2.25/4.55 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD101PUW1-A00 Optical Features
| Display Mode | HS-IPS, Normally Black, Transmissive |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White Variation | 1.25/1.50 (Max.)(5/13 points) |
| Sunlight Readable | N |
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
