تفاصيل المنتج:
|
| خطّ محيطيّ مجمل: | 235 × 143 × 5.2 ملم | حجم اللوحة: | 10,1 بوصة |
|---|---|---|---|
| قرار: | 1024 × 600 | سطح: | Antiglare ، طلاء الصلب (3H) |
| نسبة التباين: | 500: 1 (الطباع.) | تكرر: | 60HZ |
| تسليط الضوء: | industrial touch screen display,industrial lcd screen,industrial lcd screen |
||

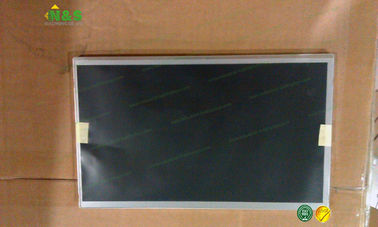

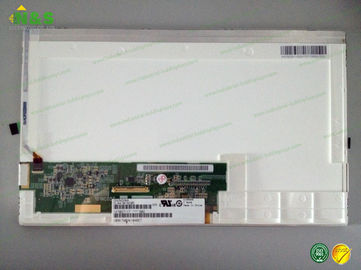

CLAA101NC05 resolution 1024×600 TFT LCD Module CPT 10.1 inch Active Area 222.72×125.28 mm new and original in stock
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
CLAA101NC05 Basic Information
| Panel Model | CLAA101NC05 |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
CLAA101NC05 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 190g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.0×128.7 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 5.2 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA101NC05 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/15/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF055WB41 TXX | CPT | 5.5" | 720×1280 |
| CLAF047LB41 TXX | CPT | 4.7" | 540×960 |
| CLAP042JB01 DW | CPT | 4.2" | 480×272 |
| CLAN043LL31 1DN | CPT | 4.3" | 480×800 |
| CLAN050LL31 1XG | CPT | 5.0" | 480×800 |
| CLAN050LG41 1XB | CPT | 5.0" | 540×960 |
| CLAB080WQ06 | CPT | 8.0" | 800×1280 |
| CLAG040LM12 | CPT | 4.0" | 480×800 |
| CLAG047LA01 AXA | CPT | 4.7" | 480×854 |
| CLAN055WA61 3XB | CPT | 5.5" | 720×1280 |
