تفاصيل المنتج:
|
| نوع اللوحة: | a-Si TFT-LCD | حجم اللوحة: | 8.9 بوصة |
|---|---|---|---|
| قرار: | 1024 × 600 | نسبة التباين: | 400: 1 (الطباع.) |
| عرض لون: | 262 كيلوبايت (6 بت) | تكرر: | 60HZ |
| تسليط الضوء: | industrial lcd screen,industrial lcd panel,industrial lcd panel |
||

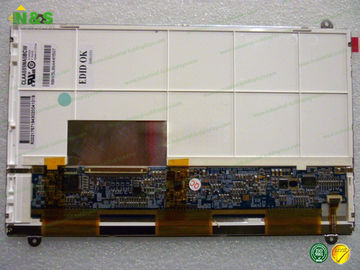

CLAA089NA0BCW TFT LCD Module CPT 8.9 inch Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.) new and original
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF050WE41 TXX | CPT | 5.0" | 720×1280 |
| CLAG040LM01 | CPT | 4.0" | 480×800 |
| CLAN050LH21 1XB | CPT | 5.0" | 540×960 |
| CLAG045LA01 AX | CPT | 4.5" | 480×854 |
| CLAF035HF21 AX | CPT | 3.5" | 320×480 |
| CLAF050LF31 | CPT | 5.0" | 480×800 |
| CLAN050LH63 XB | CPT | 5.0" | 540×960 |
| CLAG050LM01 AX | CPT | 5.0" | 480×854 |
| CLAG040LJ311 AXA | CPT | 4.0" | 480×800 |
| CLAN045WB41 2XE | CPT | 4.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
CLAA089NA0BCW Basic Information
| Panel Model | CLAA089NA0BCW |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
CLAA089NA0BCW Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 191g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 195.072×114.3 mm (H×V) |
| Bezel Area | 198.5×117.7 mm (H×V) |
| Outline Dimension | 210×139.8 mm (H×V) |
| Outline Depth | 5.2±0.3 mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel; Face mounting holes (4-Φ2.2) on top, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA089NA0BCW Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable | N |
