تفاصيل المنتج:
|
| نوع اللوحة: | a-Si TFT-LCD | حجم اللوحة: | 10,4 بوصة |
|---|---|---|---|
| قرار: | 640 × 480 | عرض لون: | 262 كيلوبايت (6 بت) |
| خطّ محيطيّ مجمل: | 238.5 × 177.5 × 12 ملم | ||
| تسليط الضوء: | industrial touch screen display,industrial lcd panel,industrial lcd panel |
||

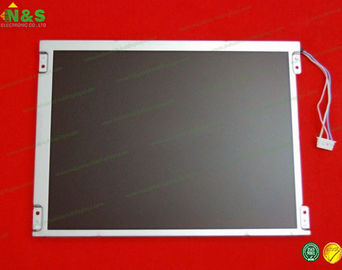

Toshiba LTD104C11S 10.4 inch 640×480 Active Area 211.2×158.4 mm Contrast Ratio 500:1 (Typ.) tft lcd module
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD045B8W7-A00 | HannStar | 4.5" | 480×854 |
| HSD024F3N7-A00 | HannStar | 2.4" | 240×320 |
| LSC320HN06 | Samsung | 31.5" | 1920×1080 |
| BF050FHME101 | BOE | 5.0" | 1080×1920 |
| BS055FHG-N41-6900 | BOE | 5.5" | 1080×1920 |
| CLAF050LQ41 TXX | CPT | 5.0" | 540×960 |
| HSD101PUW1-A00-0299 | HannStar | 10.1" | 1920×1200 |
| ST3151A04-9 | CSOT | 31.5" | 1366×768 |
| TM046XYHP02 | Tianma | 4.7" | 540×960 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LTD104C11S Basic Information
| Panel Model | LTD104C11S |
| Panel Brand | Toshiba Matsushita |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 65 °C |
| Storage Temperature | -20 ~ 80 °C |
LTD104C11S Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 500g (Typ.) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 214.6×161.8 mm (H×V) |
| Outline Dimension | 238.5×177.5 mm (H×V) |
| Outline Depth | 11.5±0.5 mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTD104C11S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
