تفاصيل المنتج:
|
| نوع اللوحة: | LTPS TFT-LCD | حجم اللوحة: | 8,4 بوصة |
|---|---|---|---|
| قرار: | 800 × 600 | خطّ محيطيّ مجمل: | 200.3 × 140.3 ملم |
| نسبة التباين: | 250: 1 (الطباع.) | تكرر: | 60HZ |
| تسليط الضوء: | industrial touch screen display,industrial lcd screen,industrial lcd screen |
||

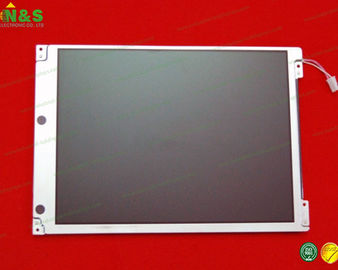

TOSHIBA Normally White LTM08C355S 8.4 inch 800×600 Active Area 170.4×127.8 mm Contrast Ratio 250:1 (Typ.)
LTM08C355S Basic Information
| Panel Model | LTM08C355S |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM08C355S Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 195g (Typ.) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×130.8 mm (H×V) |
| Outline Dimension | 200.3×140.3 mm (H×V) |
| Outline Depth | 5.5 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ2.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM08C355S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 120 cd/m2 (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Sunlight Readable | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
| LSC480HN06 | Samsung | 48" | 1920×1080 |
| LSM270HP01-001 | Samsung | 27.0" | 1920×1080 |
| LC550DUY-SHA2 | LG Display | 55" | 1920×1080 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
| HV320WHB-N80 | BOE | 31.5" | 1366×768 |
| HSD023F3N1-A01 | HannStar | 2.3" | 320×240 |
| HSD018F1N9-A01 | HannStar | 1.8" | 128×160 |
| LC650EGY-SHM1 | LG Display | 65" | 3840×2160 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LTM08C355S Signal Interface
| Signal Category | TTL |
| Signal Class | Parallel RGB (1 ch, 6-bit) |
| Input Voltage for Panel | 3.3V (Typ.)(VDD) |
| Input Current for Panel | 240mA (Typ.)(IDD) |
| Voltage for Display Signals | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD |
| Interface Type | Connector |
| Signal Interface | molex - 53794-0308, Pitch:0.5 mm, Pin:30 pins |
