تفاصيل المنتج:
|
| نوع اللوحة: | STN-LCD | منطقة نشط: | 115.18 × 86.38 مم |
|---|---|---|---|
| سطح: | غلير (هيز 0٪) | نسبة التباين: | 4: 1 (الكتابة) |
| عرض لون: | أحادية اللون | تكرر: | 75HZ |
| تسليط الضوء: | industrial touch screen display,industrial lcd screen,industrial lcd screen |
||

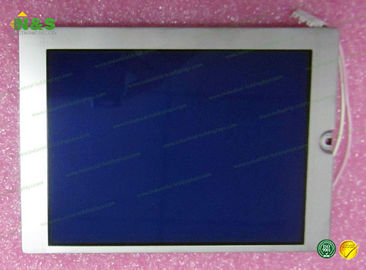

KG057QV1CA-G01 Kyocera STN-LCD 5.7 inch, 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)
KG057QV1CA-G01 Basic Information
| Panel Model | KG057QV1CA-G01 |
| Panel Brand | Kyocera |
| Descrition | STN-LCD ,5.7 inch, 320×240 |
| Panel Type | STN-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
KG057QV1CA-G01 Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.360×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 175g |
| Surface | Glare (Haze 0%) |
| Active Area | 115.18×86.38 mm (H×V) |
| Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 9.0/13.2 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting poles (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KG057QV1CA-G01 Optical Features
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 4 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 210/130 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.360; Wy:0.340 |
| Sunlight Readable | N |
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
KG057QV1CA-G01 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Life Time | 58K(Typ.) (Hours) |
| Lamp Voltage | 330V (Typ.) |
| Lamp Current | 3.0/4.0/6.0mA (Min./Typ./Max.) |
| Lamp Operating Frequency | 40/100KHz (Min./Max.) |
| Lamp Startup Voltage | 530/795V (Max.)(Ta=+25/0℃) |
| Interface Type | Connector |
| Lamp Driver Board | Optional |
Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
Our Services
1. Sample all in one computer is available for your evaluation. The lead time for sample is 5-7days.
2. Fully customizable for the outlook and some functions.
3. 1 year quality warranty, perfect after-sell service.
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
| F-55471GNFJ-SLW-AMN | Kyocera | 5.2" | 240×64 |
